Proximal sesamoid fracture
Findings are Pro only. Every normal study is free; Pro opens each finding beside its normal.
See ProWhat to look for

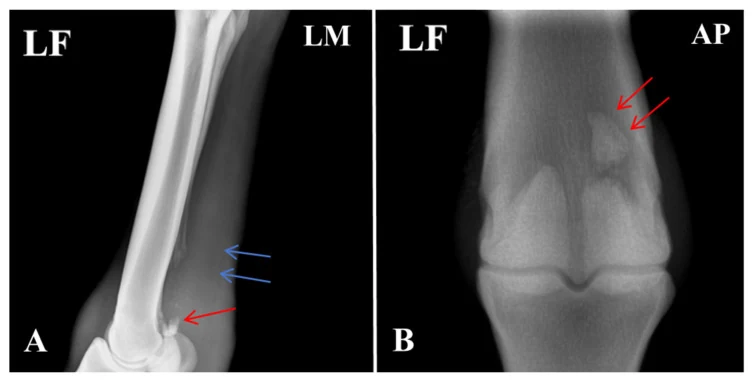

- Apical fragment of a proximal sesamoid bone (red arrow, A)
- Increased opacity over the flexor tendons (blue arrow): soft-tissue swelling
- The fragments seen again on the second view (B)
Against the normal
Read every bone's outline and density, then every joint: the space, the margins and the bone under the cartilage. Compare with the other limb, and always take at least two views at right angles.
Source: Zhang Z. et al., Vet Sci 2026;13(1):40. CC BY 4.0. For learning: not a diagnostic service.
